Adding Metrics (L2)


Metrics are the calculated values that appear on a report. For example, SCORE and POINTS EARNED are both examples of values that are calculated from audit results.

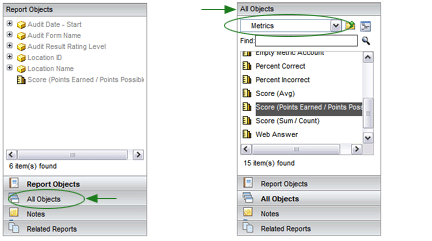

  1. In the Object Browser, use the drop-down list to navigate to the METRICS folder.

    If you don't have access to the folders in the Object Browser, click the ALL OBJECTS shortcut. This action provides access to all available objects. (See list below.)

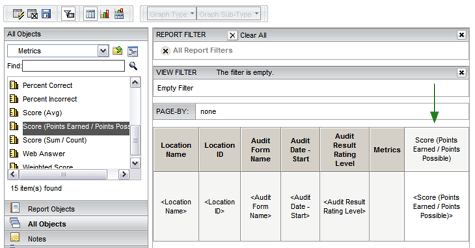

  2. Double-click the metrics that you want to add to the grid. Note that metrics always appear on the right side of the grid, and attributes always appear on the left side.



Metrics Descriptions (documentation in progress)

GENERAL METRICS

  • SCORE (AVG)
    • Description: A metric that displays the average of score values aggregated at the level of the report’s attributes. This metric averages the scores equally regardless of “points possible” differences between audits.
    • When to use: Use this metric when you want to give all audit scores equal weight when averaging. For example, one audit score equals 90 points / 100 points possible = 90%, and the second audit score equals 60 points / 80 points possible = 75%. Even though the second audit has fewer possible points, it will be weighted the same as the first audit. Score = (90% + 75%) / 2 = 82.5%. Compare this example with the one in the Score(Points Earned/Points Possible) metric description.
    • Subtotals: Average subtotals used on this metric will average the visible report-level score values rather than averaging all of the base score values. The denominator will be the rows on the report. For example, if the report shows scores broken down by 12 months, the subtotal will be Sum(Monthly Scores) / 12. This equation gives each month equal contribution to the average even if January had only 20 audits and February had 100 audits.
    • Formula: AVG(Score)
  • SCORE (POINTS EARNED / POINTS POSSIBLE)
    • Description: A metric that displays the score calculated by summing all points and dividing by possible points rather than by averaging audit scores. It takes into account the weighting differences between audits with “points possible” differences.
    • When to use: Use this metric when you want a score that weights audits by their possible point contributions. For example, one audit score equals 90 points / 100 points possible = 90%, and the second audit score equals 60 points / 80 points possible = 75%. The first audit has more possible points and will contribute more to the final score. The formula sums up all points and then divides by all possible points. Score = (90 + 60) / (100 + 80) = 83.3%. Compare this example with the one in the Score(Avg) metric description.
    • Subtotals: Any average subtotals used on this metric will always sum the points and divide by possible points without regard to the report level attributes. Subtotal = SUM(Points)/SUM(Points Possible).
    • Formula: SUM(Points Earned)/SUM(Points Possible)
  • SCORE (SUM / COUNT)
    • Description: A metric that displays the score calculated by summing all scores in the dataset and dividing by the count of scores. In a report grid, using this metric will give the same results as the Score(Avg) metric, however subtotals calculate differently.
    • When to use: Use this metric when you would use a Score(Avg) metric but need subtotals to average on a base level of individual scores rather than the report level.
    • Subtotals: Average subtotals used on this metric will sum up all scores contained in the dataset and divide by the total count of scores: SUM(Score) / COUNT(Score). For example, a Quarterly report shows scores broken down by 3 months: January (20 audits), February (100 audits), and March (50 audits). The subtotal sums up the scores of all 170 audits and divides by the total count of 170 audits. This method weights each score equally but does not weight each month equally, as some months had more audits than other months. In comparison, the Score(Avg) metric would sum the three Monthly scores and divide by three, which would weight each month equally and lose the weighting from the count of audits per month.
    • Formula: SUM(Score)/COUNT(Score)
  • PERCENT CORRECT
    • Description: A metric that displays the percent of correct answers compared to total correct and incorrect answers. It is important to note that this metric does not include “informational” answers in the denominator. For example, If a question has 6 correct answers, 4 incorrect answers, and 2 informational answers, the Percent Correct metric would display 6/(6+4) = 60%.
    • When to use: Use this metric when you want to see the percent of answers that are correct.
    • Formula: COUNT(Correct) / (COUNT(Correct) + COUNT (Incorrect))
  • PERCENT INCORRECT
    • Description: A metric that displays the percent of incorrect answers compared to total correct and incorrect answers. It is important to note that this metric does not include “informational” answers in the denominator. For example, If a question has 6 correct answers, 4 incorrect answers, and 2 informational answers, the Percent Incorrect metric would display 4/(6+4) = 40%.
    • When to use: Use this metric when you want to see the percent of answers that are incorrect.
    • Subtotals: COUNT (Incorrect) / (COUNT (Correct) + COUNT (Incorrect))
  • ANSWER
    • Description:
    • When to use:
    • Formula:
  • WEIGHTED SCORE
    • Description:
    • When to use:
    • Formula:



AVERAGE METRICS

  • SCORE (AVG)
    • Description: A metric that displays the average of score values aggregated at the level of the report’s attributes. This metric averages the scores equally regardless of “points possible” differences between audits.
    • When to use: Use this metric when you want to give all audit scores equal weight when averaging. For example, one audit score equals 90 points / 100 points possible = 90%, and the second audit score equals 60 points / 80 points possible = 75%. Even though the second audit has fewer possible points, it will be weighted the same as the first audit. Score = (90% + 75%) / 2 = 82.5%. Compare this example with the one in the Score(Points Earned/Points Possible) metric description.
    • Subtotals: Average subtotals used on this metric will average the visible report-level score values rather than averaging all of the base score values. The denominator will be the rows on the report. For example, if the report shows scores broken down by 12 months, the subtotal will be Sum(Monthly Scores) / 12. This equation gives each month equal contribution to the average even if January had only 20 audits and February had 100 audits.
  • ACTION PLAN COMPLETE %
    • Description: A metric that displays the average percentage of action plans that have been completed.
    • When to use: It is advisable to use this metric with audit level attributes or higher levels, and not Category or Question level attributes.
    • Formula: AVG(COUNT(Action Plans Complete) / COUNT(Total Action Plans))
  • ACTION PLAN COMPLETE % - CRITICAL
    • Description: A metric that displays the average percentage of critical action plans that have been completed. Critical action plans are action plans that have been created on answers that have been flagged as “Critical” in the audit instrument.
    • When to use: It is advisable to use this metric with audit level attributes or higher levels, and not Category or Question level attributes.
    • Formula: AVG(COUNT(Critical Action Plans Complete) / COUNT(Total Critical Action Plans))
  • ACTION PLAN PLANNED %
    • Description: A metric that displays the average percentage of action plans that have been planned. An action plan has three fields that need to be filled in before it is 100% planned: an action plan description, a responsible person, and a due date. An audit’s Action Plan Planned % is the sum of all populated fields across all action plans, divided by the total count of action plan fields (three fields per action plan). For example, an audit has three incorrect answers and each has an action plan. The first action plan has 1 field populated, the second action plan has two fields populated, and the third action plan is fully populated with all three fields. The audit’s Action Plan Planned % = (1 + 2 + 3) / (3 + 3 + 3) = 67%. The metric now averages that percent across all audits in the dataset.
    • When to use: It is advisable to use this metric with audit level attributes or higher levels, and not Category or Question level attributes.
    • Formula: AVG(COUNT(Action Plans Fields Populated) / COUNT(Total Action Plan Fields))
  • ACTION PLAN PLANNED % - CRITICAL
    • Description: A metric that displays the average percentage of critical action plans that have been planned. Critical action plans are action plans that have been created on answers that have been flagged as “Critical” in the audit instrument. An action plan has three fields that need to be filled in before it is 100% planned: an action plan description, a responsible person, and a due date. An audit’s Action Plan Planned % - Critical is the sum of all populated fields across all critical action plans, divided by the total count of critical action plan fields (three fields per action plan). For example, an audit has three incorrect critical answers and each has an action plan. The first action plan has 1 field populated, the second action plan has two fields populated, and the third action plan is fully populated with all three fields. The audit’s Action Plan Planned % = (1 + 2 + 3) / (3 + 3 + 3) = 67%. The metric now averages that percent across all audits in the dataset.
    • When to use: It is advisable to use this metric with audit level attributes or higher levels, and not Category or Question level attributes.
    • Formula: AVG(COUNT(Critical Action Plans Fields Populated) / COUNT(Total Critical Action Plan Fields))
  • AUDIT DURATION IN MINUTES (AVG)
    • Description: A metric that displays the average amount of time that an audit took to complete, in minutes.
    • Formula: AVG(Audit End Time – Audit Start Time)
  • CRITICAL ITEMS (AVG)
    • Description: A metric that displays the average count of critical items, which are answer choices that have been flagged as a “critical choice” in the audit instrument.
    • When to use: Use this metric when you want to display the number of critical answers, averaged across the report attributes.
    • Formula: AVG(COUNT(Critical))
  • LOWER LIMIT
    • Description:
    • When to use:
    • Formula:
  • NON-COMPLIANT ITEMS (AVG)
    • Description: A metric that displays the average count of non-compliant items, which are answer choices that have been flagged as “incorrect” in the audit instrument.
    • When to use: Use this metric when you want to display the number of non-compliant answers, averaged across the report attributes.
    • Formula: AVG(COUNT(Incorrect))
  • NUMERIC ANSWER TEXT (AVG)
    • Description: A metric that displays the average of all answers that can be converted to a number.
    • When to use: This metric is useful when you have a numeric question such as Temperature or Weight, and you want to average the values of the answers across the report attributes.
    • Formula: AVG(Numeric Answer)
  • POINTS EARNED (AVG)
    • Description: A metric that displays the average points earned.
    • Formula: AVG(Points Earned)
  • POINTS POSSIBLE (AVG)
    • Description: A metric that displays the average of the points possible.
    • Formula: AVG(Points Possible)
  • TARGET
    • Description:
    • When to use:
    • Formula:
  • UPPER LIMIT
    • Description:
    • When to use:
    • Formula:

  •

MAXIMUM METRICS

  • AUDIT DURATION IN MINUTES (MAX)
    • Description: A metric that displays the maximum amount of time that an audit took to complete, in minutes.
    • When to use: Use this metric to display the single largest audit duration value across the report attributes.
    • Formula: MAX(Audit End Time – Audit Start Time)
  • AUDIT RESULT RATING (MAX)
    • Description: A metric that displays the maximum audit result rating.
    • When to use: Use this metric to display the highest audit result rating across the report attributes.
    • Formula: MAX(Audit Result Rating)
  • CRITICAL ITEMS (MAX)
    • Description: A metric that displays the maximum count of critical items, which are answer choices that have been flagged as a “critical choice” in the audit instrument.
    • When to use: Use this metric when you want to display the highest number of critical answers across the report attributes.
    • Formula: MAX(COUNT(Critical))
  • NON-COMPLIANT ITEMS (MAX)
    • Description: A metric that displays the maximum count of non-compliant items, which are answer choices that have been flagged as “incorrect” in the audit instrument.
    • When to use: Use this metric when you want to display the highest number of non-compliant answers across the report attributes.
    • Formula: MAX(COUNT(Incorrect))
  • NUMERIC ANSWER TEXT (MAX)
    • Description: A metric that displays the maximum of all answers that can be converted to a number.
    • When to use: This metric is useful when you have a numeric question such as Temperature or Weight, and you want to find the highest value across the report attributes.
    • Formula: MAX(Numeric Answer)
  • POINTS POSSIBLE (MAX)
    • Description: A metric that displays the maximum points possible.
    • Formula: MAX(Points Possible)



MINIMUM METRICS

  • AUDIT DURATION IN MINUTES (MIN)
    • Description: A metric that displays the minimum amount of time that an audit took to complete, in minutes.
    • When to use: Use this metric to display the single smallest audit duration value across the report attributes.
    • Formula: MIN(Audit End Time – Audit Start Time)
  • AUDIT RESULT RATING (MIN)
    • Description: A metric that displays the minimum audit result rating.
    • When to use: Use this metric to display the lowest audit result rating across the report attributes.
    • Formula: MIN(Audit Result Rating)
  • CRITICAL ITEMS (MIN)
    • Description: A metric that displays the minimum count of critical items, which are answer choices that have been flagged as a “critical choice” in the audit instrument.
    • When to use: Use this metric when you want to display the lowest number of critical answers across the report attributes.
    • Formula: MIN(COUNT(Critical))
  • NON-COMPLIANT ITEMS (MIN)
    • Description: A metric that displays the minimum count of non-compliant items, which are answer choices that have been flagged as “incorrect” in the audit instrument.
    • When to use: Use this metric when you want to display the lowest number of non-compliant answers across the report attributes.
    • Formula: MIN(COUNT(Incorrect))
  • NUMERIC ANSWER TEXT (MIN)
    • Description: A metric that displays the minimum of all answers that can be converted to a number.
    • When to use: This metric is useful when you have a numeric question such as Temperature or Weight, and you want to find the lowest value across the report attributes.
    • Formula: MIN (Numeric Answer)


PROGRAM COMPLIANCE METRICS
  • COMPLETE TASK COUNT - Displays the total number of tasks that have been completed.
  • OVERDUE PARTNER COUNT - Displays the number of locations with overdue tasks.
  • OVERDUE TASK COUNT - Displays the total number of overdue tasks, both incomplete and complete.
  • PARTNER COUNT - Displays the number of locations assigned to a program.
  • PAST DUE COMPLETE TASK COUNT - Displays the number of past due tasks that are now complete.
  • PAST DUE TASK COUNT - Displays the total number of tasks that are past due, both incomplete and complete.
  • TASK AMOUNT DUE (SUM) - Displays the amount of fees due, as required by a payment task.
  • TASK COUNT- Displays the total number of tasks associated with a program.
  • TASK HOURS IN PROCESS (SUM) - Displays the total number of hours it took to complete the task, from creation to completion. If the task is currently incomplete, displays the number of hours from the creation of the task to the current time.
  • TASK HOURS OVERDUE (SUM) - Displays the total number of hours since the task was due.
  • TASK HOURS UNTIL DUE (SUM) - Displays the number of hours remaining before a task is due.

  •

QUANTITY METRICS

  • AUDIT RESULT COUNT
    • Description: A metric that displays the total count of distinct audit results. The distinct nature of the count means that if the same audit result identifier appears multiple times in a dataset, the metric will only count that audit result once rather than the number of times it appears.
    • When to use: Use this metric when you want to display the number of audits that have been performed.
    • Formula: COUNT(Audit Result)
  • CATEGORY COUNT
    • Description: A metric that displays the total count of categories.
    • When to use: Use this metric when you want to display the number of categories. This is particularly useful when used in conjunction with duplicate categories, where the same category can be measured multiple times during a single audit.
    • Formula: COUNT(Category)
  • COMPLIANT ITEMS COUNT
    • Description: A metric that displays the total count of compliant items, which are answer choices that have been flagged as “correct” in the audit instrument.
    • When to use: Use this metric when you want to display the number of compliant answers.
    • Formula: COUNT(Correct)
  • CRITICAL ITEMS COUNT
    • Description: A metric that displays the total count of critical items, which are answer choices that have been flagged as a “critical choice” in the audit instrument.
    • When to use: Use this metric when you want to display the number of critical answers.
    • Formula: COUNT(Critical)
  • FORCE FAIL QUESTION
    • Description:
    • When to use:
    • Formula:
  • FORCE FAIL COUNT
    • Description:
    • When to use:
    • Formula:
  • INFORMATIONAL COUNT
    • Description: A metric that displays the total count of informational items, which are answer choices that have been flagged as “informational” in the audit instrument.
    • When to use: Use this metric when you want to display the number of informational answers.
    • Formula: COUNT(Informational)
  • LOCATION COUNT
    • Description: A metric that displays the total count of distinct locations. The distinct nature of the count means that if the same location appears multiple times in a dataset, the metric will only count that location once rather than the number of times it appears.
    • When to use: Use this metric when you want to display the number of locations that have been audited.
    • Formula: COUNT(Location)
  • NON-COMPLIANT CATEGORY COUNT
    • Description: A metric that displays the total count of categories that have an incorrect answer within them. Even one incorrect answer will flag the category as incorrect even though there may be many questions in the category.
    • When to use: Use this metric when you want to display how many categories have at least one incorrect answer.
    • Formula: COUNT(Category with Incorrect Answer)
  • NON-COMPLIANT ITEMS COUNT
    • Description: A metric that displays the total count of non-compliant items, which are answer choices that have been flagged as “incorrect” in the audit instrument.
    • When to use: Use this metric when you want to display the number of non-compliant answers.
    • Formula: COUNT(Incorrect)
  • NON-CRITICAL ITEMS COUNT
    • Description: A metric that displays the total count of non-critical items, which are answer choices that have not been flagged as a “critical choice” in the audit instrument.
    • When to use: Use this metric when you want to display the number of non-critical answers.
    • Formula: COUNT(NOT Critical)
  • PREDEFINED COMMENT COUNT
    • Description: A metric that displays the total count of distinct predefined comments. The distinct nature of the count means that if the same comment appears multiple times in a dataset, the metric will only count that comment once rather than the number of times it appears.
    • When to use: Use this metric when you want to display the number of predefined comments that have been selected.
    • Formula: COUNT(Predefined Comment)
  • PREDEFINED COMMENT COUNT_NOT DISTINCT
    • Description: A metric that displays the total count of non-distinct predefined comments. The non-distinct nature of the count means that if the same comment appears multiple times in a dataset, the metric will count the number of times it appears, even if there are duplicate rows of the same comment.
    • When to use: Use this metric when you want to display the number of predefined comments that have been selected.
    • Formula: COUNT(Predefined Comment)
  • QUESTION COUNT
    • Description: A metric that displays the total count of distinct questions. The distinct nature of the count means that if the same question appears multiple times in a dataset, the metric will only count that location once rather than the number of times it appears.
    • When to use: Use this metric when you want to display the number of questions that have been answered.
    • Formula: COUNT(Question)
  • QUESTION COUNT_NOT DISTINCT
    • Description: A metric that displays the total count of non-distinct questions. The non-distinct nature of the count means that if the same question appears multiple times in a dataset, the metric will count the number of times it appears even if there are duplicate rows of the same question.
    • When to use: Use this metric when you want to display the number of questions that have been answered.
    • Formula: COUNT(Question)
  • REPEAT CRITICAL VIOLATION COUNT
    • Description: A metric that displays the total count of items that are Repetitive, Incorrect, and Critical.
    • When to use: Use this metric when you want to display the number of critical answers that have been incorrect repetitively.
    • Formula: COUNT(Incorrect AND Critical AND Repetitive)
  • REPEAT VIOLATION COUNT
    • Description: A metric that displays the total count of items that are Repetitive and Incorrect.
    • When to use: Use this metric when you want to display the number of answers that have been incorrect repetitively.
    • Formula: COUNT(Incorrect AND Repetitive)



SUM METRICS

  • AUDIT DURATION IN MINUTES (SUM)
    • Description: A metric that displays the total amount of time that an audit took to complete, in minutes.
    • When to use: Use this metric to display the sum total of all audit duration values across the report attributes.
    • Formula: SUM(Audit End Time – Audit Start Time)
  • NUMERIC ANSWER TEXT (SUM)
    • Description: A metric that displays the total of all answers that can be converted to a number.
    • When to use: This metric is useful when you have a numeric question such as Temperature or Weight, and you want to find the sum total of all values across the report attributes.
    • Formula: SUM(Numeric Answer)
  • POINTS EARNED (SUM)
    • Description: A metric that displays the total points earned.
    • Formula: SUM(Points Earned)
  • POINTS POSSIBLE (SUM)
    • Description: A metric that displays the total points possible.
    • Formula: SUM(Points Possible)



WAIVER

  • AVG HOURS IN WORKFLOW QUEUE
  • AVG WAIVER DAYS IN PROCESS
  • HOURS LEFT UNTIL WAIVER EXPIRATION
  • HOURS
  • QUEUE ESCALATION THRESHOLD COUNT
  • QUEUE WARNING THRESHOLD COUNT
  • TOTAL HOURS IN WORKFLOW QUEUE
  • WAIVER ATTACHMENT COUNT
  • WAIVER CORRESPONDENCE COUNT
  • WAIVER COUNT
